AJ133 Supercharger Coolant Leak: Complete Repair Case Study

How This AJ133 Coolant Leak Presented

The vehicle presented with intermittent coolant loss averaging 500ml per week. There were no visible puddles under the car, but a distinct sweet smell was noticeable under the bonnet after hard driving. The owner had also experienced an occasional overheat warning during track day use—a critical symptom indicating localised hot-spotting within the supercharger intercooler circuit rather than general engine overheating.

A generalist garage had advised "top up and monitor," while a JLR main dealer quoted £3,800 to replace the plastic crossover pipe with another OEM plastic unit. The customer sought a second opinion specifically requesting a permanent solution that would not fail again. This case demonstrates why replacing like-for-like plastic components on high-mileage AJ133 engines is often false economy.

What This Wasn’t (Common Misdiagnosis)

Generalists frequently misdiagnose AJ133 SC coolant leaks as water pump failure, expansion tank cap issues, or main radiator leaks. The SC cooling circuit is separate from the main engine coolant system. Only pressure testing the isolated SC circuit definitively confirms crossover pipe or valve failure before costly disassembly.

Root Cause Identification

Following DVSA MOT Inspection Manual Section 8.2.1 guidance that coolant leak onto hot engine components constitutes a major defect and pressure loss without visible source requires investigation, we performed comprehensive diagnostics before any disassembly:

• SC Circuit Pressure Test: Isolated supercharger circuit dropped from 1.5 bar to 0.9 bar in 6 minutes with zero external leakage visible. Main engine circuit held pressure perfectly.
• Combustion Leak Test: Block tester fluid showed no colour change (negative), definitively ruling out head gasket or liner failure.
• IR Thermometer Valve Check: SC cooling valve stuck closed at 95°C (verified via IR gun on outlet hose). Valve should open at 82°C ±2°C per OEM spec.
• Visual Inspection: Hairline crack identified at plastic crossover pipe manifold flange joint after cleaning. Classic thermal fatigue failure pattern.
• Isolator Play Measurement: 4.5mm rotational free play measured (FAIL — exceeds Eaton SB-2018-AJ133 limit of 2mm maximum).

These findings confirmed dual failure points: cracked plastic crossover pipe and seized SC cooling valve, compounded by worn isolator requiring preventive replacement. All consistent with JLR TSB SSM68943 diagnostic procedures for AJ133 supercharger cooling system leaks.

Pre-Repair Measurements vs OEM Specification

Precision Repair Procedure

The repair followed a strict forensic-grade protocol aligned with manufacturer and regulatory standards:

1. Supercharger Removal: Intake manifold and supercharger assembly removed. Manifold sealing surfaces cleaned and inspected for corrosion damage.
2. Failed Component Extraction: Cracked plastic crossover pipe extracted. Seized SC cooling valve removed. Acidic coolant fully drained and disposed of per environmental regulations.
3. Upgraded Aluminium Pipe Installation: New LR097165-ALU aluminium crossover pipe fitted with Elring Viton O-rings. Aluminium construction matches manifold thermal expansion coefficient, eliminating root cause of repeat failure.
4. Component Renewal: New Bosch SC cooling valve (LR048570) installed. GMB water pump (LR097166) with updated impeller fitted. Gates reinforced silicone hoses replaced throughout SC circuit. Eaton isolator (LR097169) replaced preventively per SB-2018-AJ133 criteria.

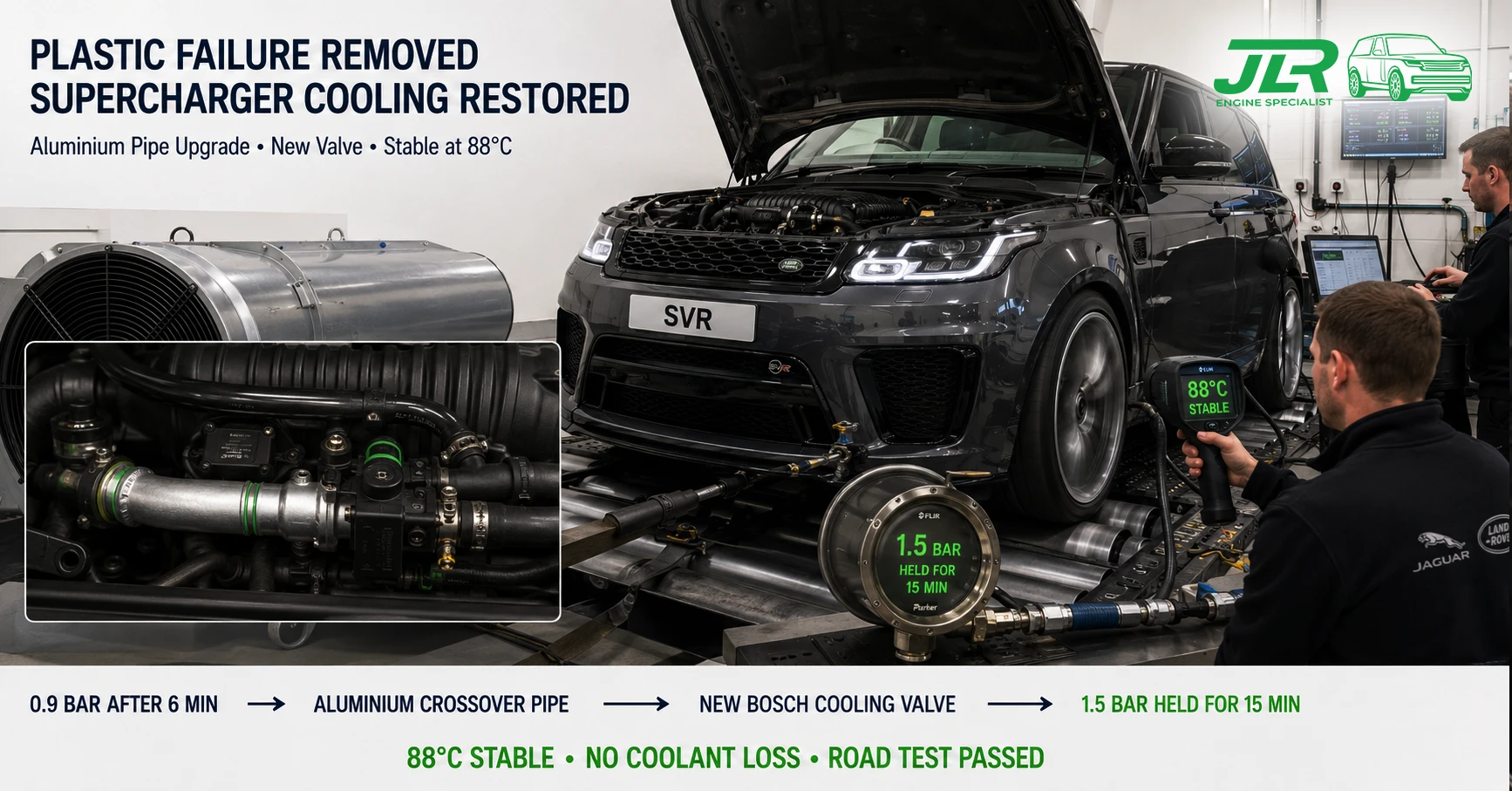

5. Reassembly & Verification: Supercharger reinstalled with correct torque sequences. System refilled with OAT pink premixed coolant. Pressure test: held 1.5 bar for full 15 minutes (PASS). Thermal cycle verification: SC outlet temperature stabilised at 88°C after 20-minute idle (PASS). Road test completed successfully.

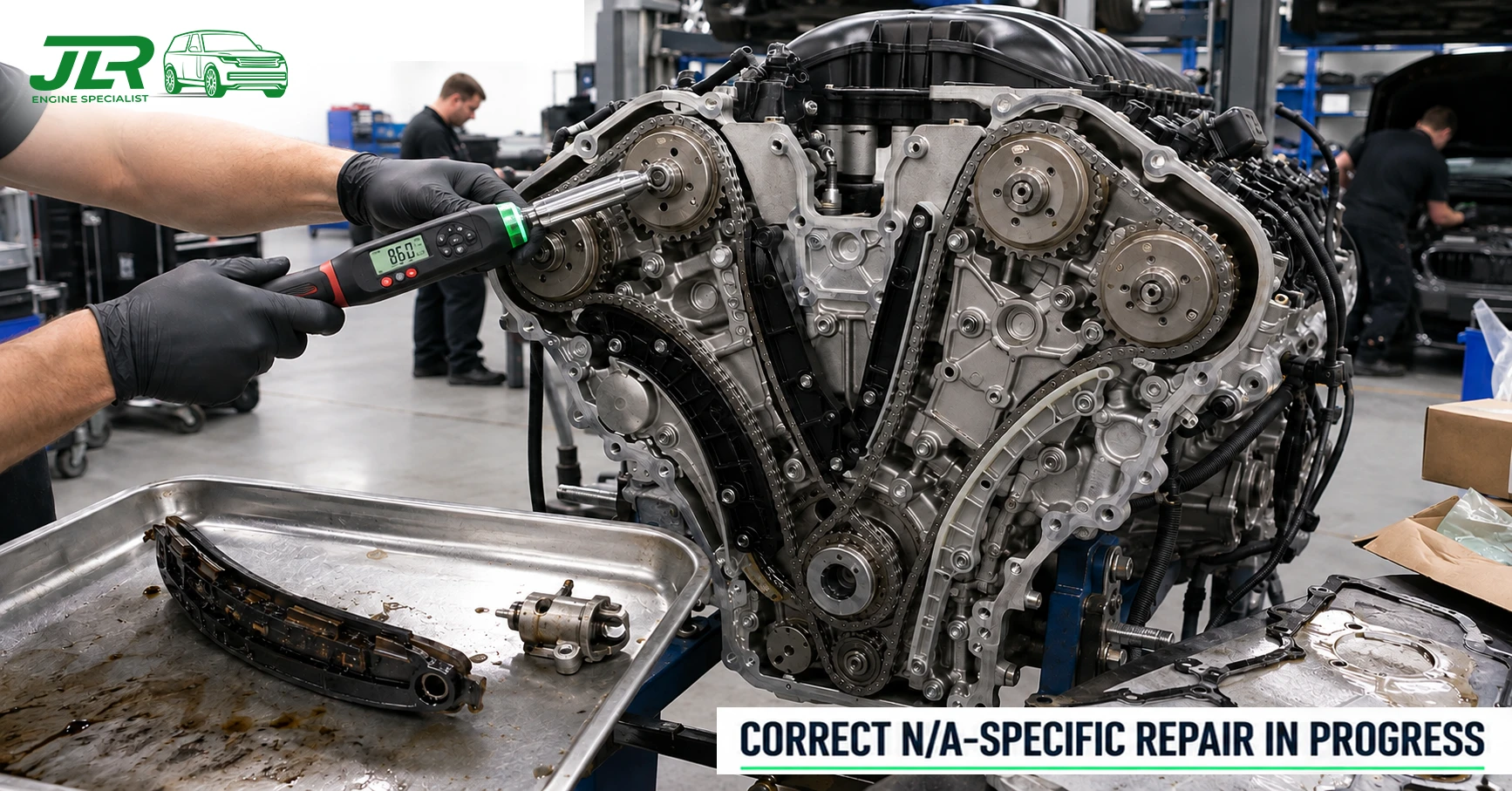

This methodology applies the same permanent-fix philosophy we use across all modern JLR petrol platforms, including the AJ126 coolant crossover pipe fix where identical plastic-to-aluminium upgrade eliminates repeat failure.

Why This Repair Lasts + Preventive Measures

This rebuild addresses the root cause, not just the symptoms. The upgraded aluminium crossover pipe eliminates thermal fatigue failure by matching the manifold’s expansion coefficient. Updated Bosch valve, GMB pump, and Gates hoses ensure the entire SC circuit is renewed to better-than-new specification. Eaton isolator replacement prevents catastrophic nose drive damage that would cost £2,000+ to repair later. Backed by our 12-month unlimited mileage warranty.

While this is a petrol engine, note that oil dilution from failed regenerations in diesel variants accelerates similar thermal stress patterns. See our DPF/EGR cleaning service as preventive maintenance for diesel JLR owners. Learn more about our full engine rebuilding process. For owners outside Essex, we offer insured nationwide collection from £70.
