BMW B47 Oil Pump Drive Failure: Complete Repair Case Study

How This B47 Oil Pump Drive Failure Presented

The vehicle presented with an intermittent oil pressure warning light that illuminated only at hot idle after extended motorway driving. Crucially, there was no audible mechanical noise—no knocking, no whining, no rattle—and no external oil leaks were visible. The owner had already paid a generalist garage to replace the oil pressure sensor, which made no difference to the warning light.

A BMW main dealer subsequently diagnosed "internal engine failure" and quoted £4,200 for a complete replacement engine assembly, stating the B47 oil pump was "not serviceable." The customer sought a second opinion from a specialist who understood modern BMW diesel architecture before writing off the vehicle. This case demonstrates why sensor replacement without mechanical verification is insufficient, and why dealer condemnation of the B47 platform often overlooks viable module-level repair.

What This Wasn’t (Common Misdiagnosis)

Generalists frequently misdiagnose B47 oil pump drive failure as faulty oil pressure sensors, turbo bearing wear, or timing chain issues. The B47 uses a dedicated oil pump drive chain separate from the timing chain. Only direct oil pressure testing + drive gear backlash measurement distinguishes pump drive failure from sensor or timing faults.

Root Cause Identification

Following DVLA Vehicle Data Standard Section 4.2 guidance on correct engine code variant matching for lubrication components, we performed comprehensive mechanical diagnostics before any disassembly:

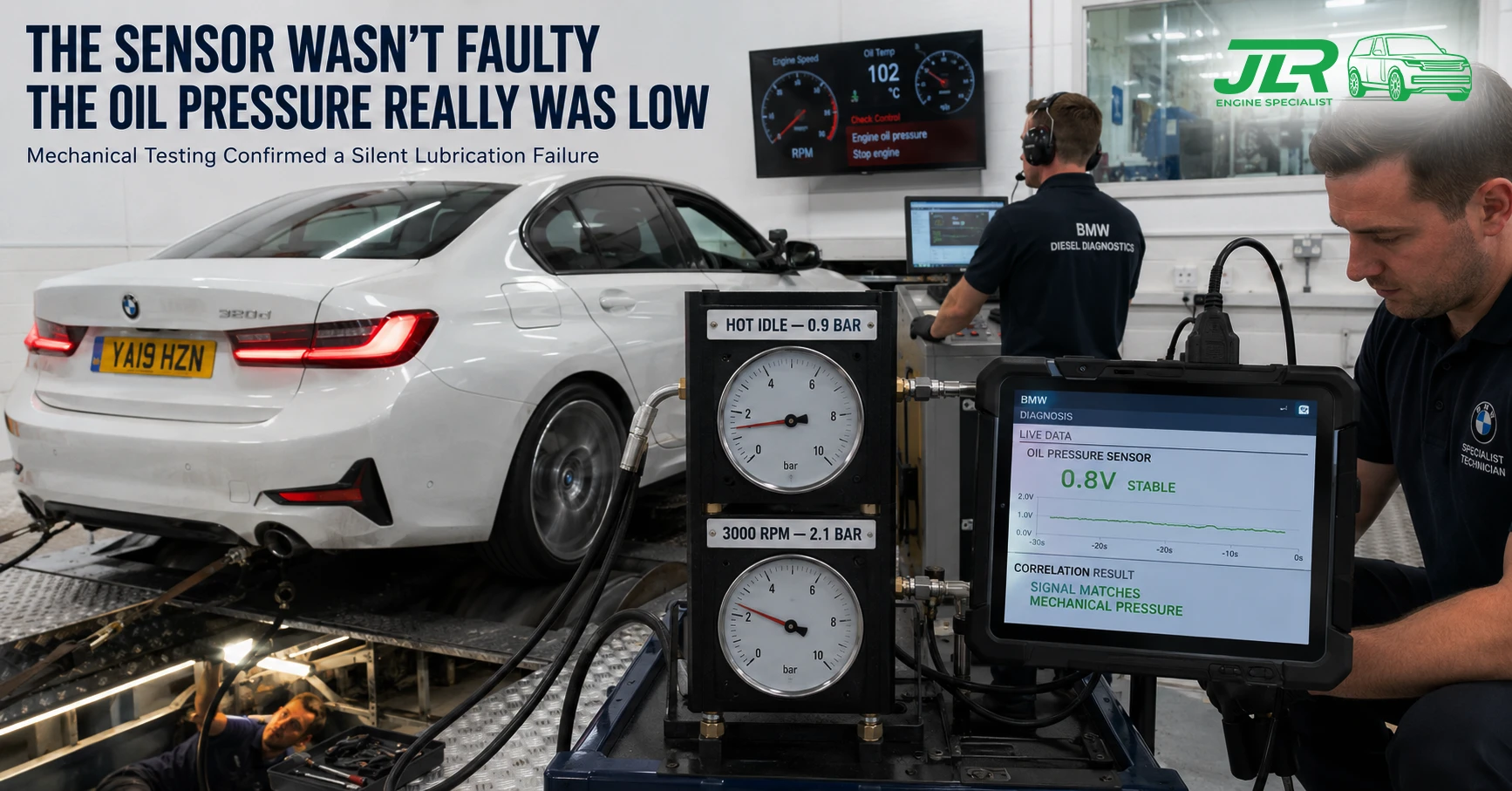

• Mechanical Oil Pressure Test: 0.9 bar at hot idle (FAIL — below 1.5 bar minimum); 2.1 bar at 3000 RPM hot (FAIL — below 3.0 bar minimum). Confirmed genuine low pressure, not sensor fault.
• Sensor Output Verification: Live data showed 0.8V at idle, linear and consistent with measured mechanical pressure. Sensor was accurate; fault was mechanical.
• Sump Drop Inspection: Oil pump drive gear backlash measured at 0.28 mm (FAIL — exceeds 0.12 mm maximum). Dedicated drive chain elongation measured at 0.8% (FAIL — 2.7× the 0.3% limit).
• Oil Pickup Tube: Minor sludge accumulation noted but no blockage or deformation. Cleaned during reassembly.

These findings confirmed dedicated oil pump drive chain stretch and gear wear as the root cause, consistent with BMW TIS SI B11 05 19 diagnostic procedures for B47 lubrication system failures. The silent presentation (no audible noise) is characteristic of B47 pump drive wear versus N47 timing chain failure, making mechanical measurement essential.

Pre-Repair Measurements vs OEM Specification

Precision Repair Procedure

The repair followed a strict forensic-grade protocol aligned with BMW TIS SI B11 05 19 and INA/Schaeffler TB-B47-2020-02 standards:

1. Engine Removal & Separation: Full engine extraction mandatory for B47 rear-mounted oil pump access. Engine separated from transmission on bench for safe, precise module work.
2. Pump Module Extraction: Failed integrated oil pump module (BMW 11418511668) removed along with stretched dedicated drive chain. Main bearing journals inspected — within specification, no scoring found.
3. New Module Installation: Genuine BMW 11418511668 pump module fitted. New INA 11418511669 drive chain and 11418511670 hydraulic tensioner installed. Tensioner primed per TB-B47-2020-02 protocol to prevent dry-start damage on first ignition.
4. Seal & Gasket Renewal: New Elring sump gasket set (11138511672) with updated pickup tube O-ring fitted. Front crankshaft seal (11148511673) replaced preventively while sump was off.

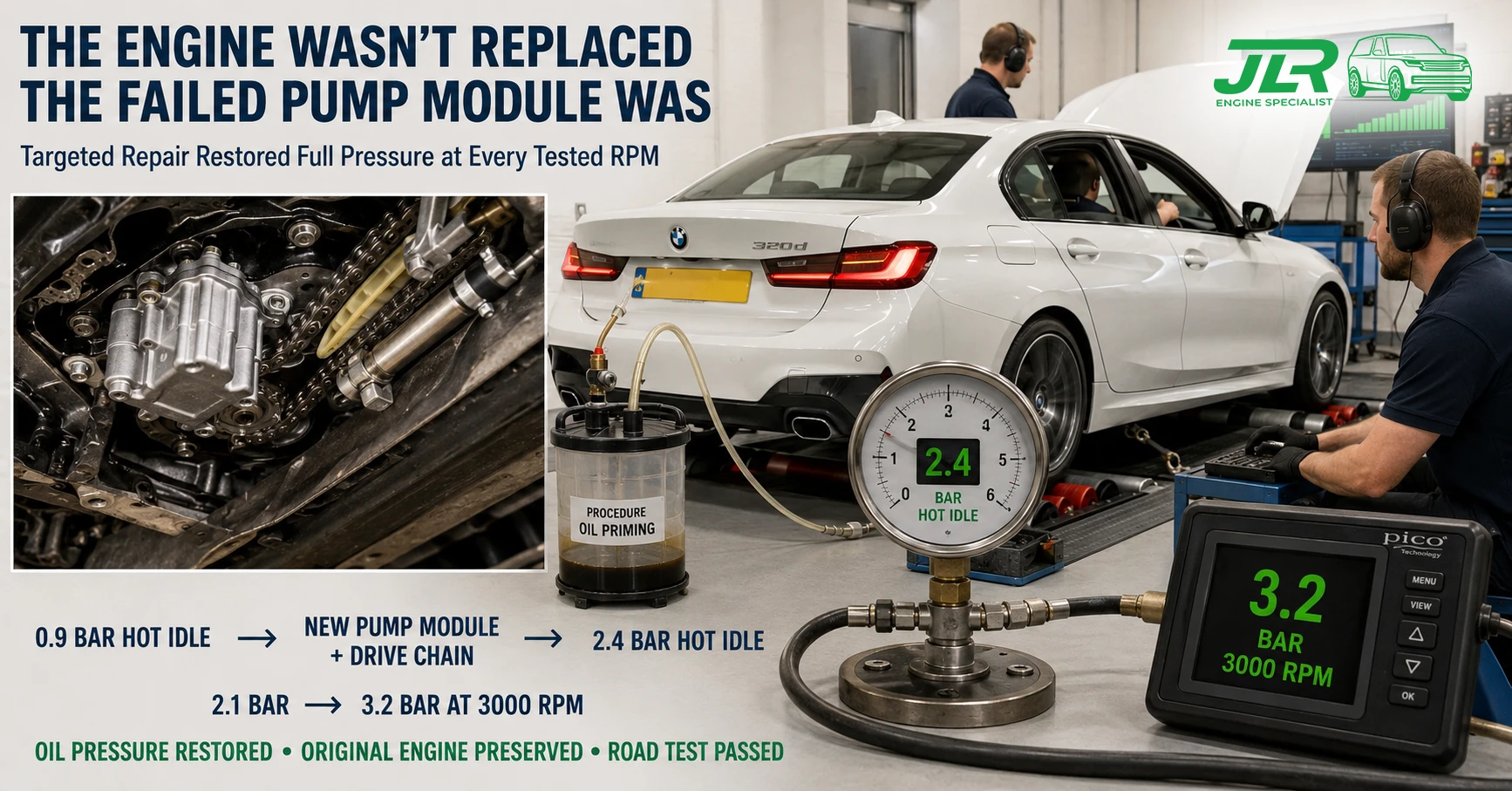

5. Reassembly & Verification: Engine reinstalled. System refilled with 5.0L BMW Longlife-17 FE+ spec oil (Mann HU 6019 z filter). Multi-RPM oil pressure test: 2.4 bar at hot idle (PASS), 3.2 bar at 3000 RPM (PASS). Road test completed successfully. 12-month unlimited mileage warranty applied.

This methodology applies the same forensic measurement discipline we use across all modern diesel platforms, including the Ingenium slipped liner repair where precise pre-repair measurement prevents unnecessary component replacement.

Why This Repair Lasts + Preventive Measures

This rebuild addresses the root cause, not just the symptoms. The integrated BMW pump module replaces the entire wear assembly—housing, gears, and pressure relief valve—as a single matched unit. New INA drive chain and hydraulic tensioner eliminate the stretch and slack that caused gear wear. Mandatory oil and filter change with correct LL-17FE+ specification completes the sealed lubrication system. Backed by our 12-month unlimited mileage warranty.

Extended oil drain intervals (common on B47) accelerate identical drive chain wear patterns seen in JLR Ingenium engines. See our DPF/EGR cleaning service for complementary preventive maintenance on diesel platforms. Learn more about our full engine rebuilding process. For owners outside Essex, we offer insured nationwide collection from £70.
