Jaguar XJ AJ133 N/A Timing Chain Failure: Complete Repair Case Study

How This AJ133 N/A Timing Chain Failure Presented

The vehicle presented with a distinct rhythmic rattle on cold start lasting 2–3 seconds, which diminished as oil pressure built. There were no stored fault codes, leading a generalist garage to dismiss the noise as "normal V8 character." However, when the owner sought a second opinion at a Jaguar main dealer, they were incorrectly identified as having a supercharged engine and quoted £4,500 for a timing chain replacement bundled with unnecessary supercharger isolator service.

The customer, knowing their XJ was naturally aspirated, sought a specialist who understood the specific differences between AJ133 variants. This case highlights why variant-specific knowledge is critical: using S/C parts on an N/A engine causes improper tensioning, while paying for S/C labour on an N/A car wastes hundreds of pounds.

What This Wasn’t (Common Misdiagnosis)

Generalists frequently misdiagnose AJ133 N/A timing rattle as hydraulic lifter noise, exhaust manifold leak, or supercharger isolator wear. The N/A variant has no supercharger; isolator-related diagnoses are irrelevant. Only cam correlation data + physical chain/guide inspection definitively confirms timing wear before costly strip-down.

Root Cause Identification

Following DVSA MOT Inspection Manual Section 8.1.3 guidance that excessive mechanical noise indicative of timing system wear constitutes a major defect, we performed comprehensive diagnostics before any disassembly:

• SDD Live Data: Cam correlation measured at -5.8° (Bank 1) and -4.2° (Bank 2) at idle (FAIL — exceeds ±3° limit). Confirms jumped timing due to chain/guide wear.

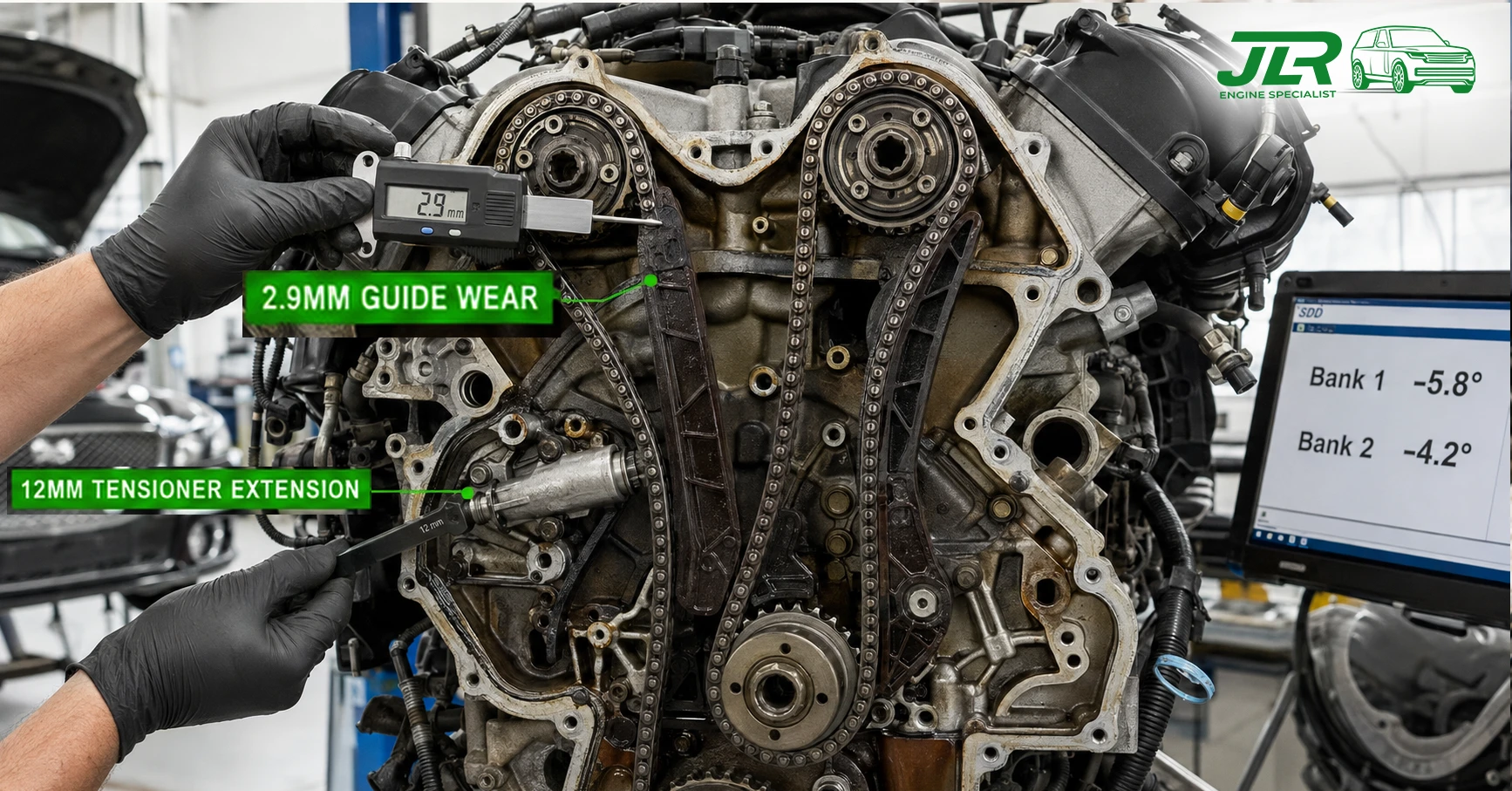

• Visual Inspection (Post-Removal): Upper guide rail wear depth 2.9 mm; lower guide 2.4 mm (FAIL — exceeds 1.0 mm service limit). Plastic substrate fully exposed with deep grooving.
• Chain Elongation: 1.6% stretch measured via pin-length method (FAIL — 3.2× the 0.5% OEM limit).
• Tensioner Extension: 12 mm extension observed (FAIL — exceeds 8 mm maximum; ratchet mechanism collapsed).
• Oil Pressure: 2.0 bar at hot idle (PASS — oil pump healthy; rules out lubrication starvation as primary cause).

These findings confirmed timing guide wear and chain stretch as the root cause, consistent with JLR TSB SSM71234 diagnostic procedures for AJ133 Naturally Aspirated V8 timing systems. Crucially, the absence of supercharger components was verified before parts ordering, preventing the costly misidentification experienced at the dealership.

Pre-Repair Measurements vs OEM Specification

Precision Repair Procedure

The repair followed a strict forensic-grade protocol aligned with JLR TSB SSM71234 and INA/Schaeffler TB-AJ133NA-2018-02 standards:

1. Front Cover Removal & Disassembly: Front cover removed. Old chains, guides, and tensioners extracted. Camshaft and crankshaft sprockets inspected for wear — none found.
2. N/A-Specific Kit Installation: INA 559 0148 10 N/A-specific timing chain kit fitted. This kit is distinct from the supercharged variant with different chain lengths and guide geometry. Steel-backed guide rails (LR052586/LR052587) installed to eliminate plastic wear failure mode permanently.
3. Tensioner & Fastener Renewal: New INA tensioners (LR052588) with updated ratchet design installed. Cam sprocket bolts replaced with genuine Land Rover TTY fasteners (LR032849 ×4); single-use bolts never reused. All torque sequences per TB-AJ133NA-2018-02.
4. Seal & Gasket Renewal: Valve cover gasket set (Elring LR042890) renewed including spark plug tube seals. Front cover resealed with Victor Reinz RTV silicone.
5. Reassembly & Verification: System refilled with 7.5L STJLR.06.5004 spec oil (Mann HU 719/8 x filter). SDD cam adaptation performed. Cam correlation verified: +1.5° Bank 1, +1.2° Bank 2 (PASS). Three consecutive cold starts completed: zero rattle confirmed. Road test successful. 12-month unlimited mileage warranty applied.

This methodology applies the same variant-specific precision we use across all JLR petrol platforms, including the AJ133 supercharger coolant leak repair where distinguishing S/C from N/A components is equally critical.

Why This Repair Lasts + Preventive Measures

This rebuild addresses the root cause, not just the symptoms. Steel-backed guides eliminate the plastic degradation failure mode that caused original wear. N/A-specific INA kit ensures correct chain length and tensioner geometry for naturally aspirated variant. Full kit approach prevents partial repair recurrence. Mandatory oil and filter change with correct STJLR.06.5004 specification completes the sealed system. Backed by our 12-month unlimited mileage warranty.
