Defender TD5 Oil Pump Bolt Failure: Complete Repair Case Study

How This TD5 Oil Pump Failure Presented

The vehicle presented with a deep, rhythmic bottom-end knock that had been worsening progressively over two months. Crucially, the low oil pressure warning light was now illuminating at hot idle—a definitive sign of advanced lubrication system failure. There were no external oil leaks visible, and the engine still started and ran, albeit with audible distress under load.

A generalist garage had diagnosed "terminal bearing wear" and recommended a complete engine replacement. A non-specialist subsequently advised that at 185,000 miles, the vehicle was "not worth fixing." The customer, however, wanted to preserve the original matching-numbers engine for heritage value and sought a specialist second opinion. This case demonstrates why blanket condemnation of high-mileage TD5 engines is often premature when the root cause is a known, fixable design weakness.

What This Wasn’t (Common Misdiagnosis)

Generalists frequently misdiagnose TD5 oil pump bolt failure as main bearing wear, turbo failure, or injector harness chafing. While bearings often suffer secondary damage, the root cause is fractured pump bolts causing gear misalignment. Only sump removal and direct bolt inspection definitively confirms the failure before full engine strip-down.

Root Cause Identification

Following DVSA Classic Vehicle MOT Guidelines Section 3.2 regarding heritage vehicle engine standards and period-correct repair documentation, we performed comprehensive mechanical diagnostics before any major disassembly:

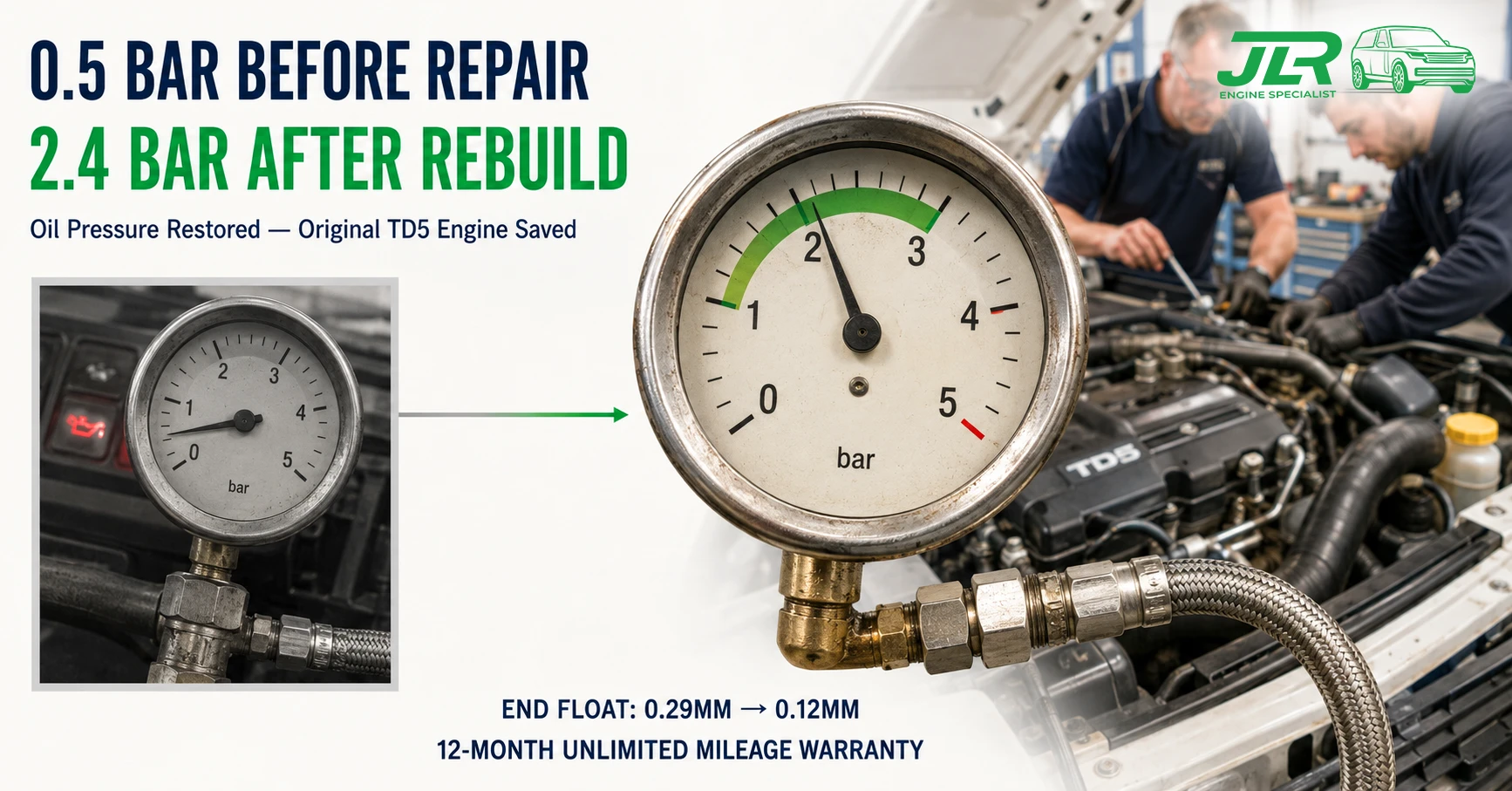

• Mechanical Oil Pressure Test: 0.5 bar at hot idle with warning light active (FAIL — below 1.0 bar minimum).
• Sump Drop Inspection: 2 of 4 oil pump mounting bolts found fractured; remaining 2 stretched beyond yield point. Metal debris present in sump pan.
• Gear Backlash Measurement: 0.38 mm measured (FAIL — exceeds 0.15 mm OEM limit; confirms sintered gear tooth wear).
• Crankshaft End Float: 0.29 mm measured via dial gauge (FAIL — exceeds 0.07–0.17 mm OEM limit).
• Journal Measurement: Main journals at 68.73 mm and rod journals at 52.74 mm (both FAIL — worn beyond standard; regrind to -0.25 mm required).
• Oil Pickup Pipe Inspection: Hairline crack identified at weld joint (FAIL — contributing to cavitation and pressure loss).

These findings confirmed catastrophic oil pump bolt failure as the primary root cause, consistent with Land Rover Workshop Manual LRL0479EN overhaul procedures and the well-documented TD5 sintered gear design weakness.

Pre-Repair Measurements vs OEM Specification

Precision Repair Procedure

The repair followed a strict forensic-grade rebuild protocol aligned with Land Rover Workshop Manual LRL0479EN and heritage preservation standards:

1. Engine Removal & Strip-Down: Full engine extraction and separation from transmission. Complete disassembly to bare block. Ultrasonic cleaning of all oil galleries to remove metal debris from bolt fracture.
2. Bolt Extraction & Block Inspection: Fractured pump bolt remnants extracted via drill/tap where seized. Block threads inspected and chased. No thread damage found.
3. Crankshaft Regrinding: Crankshaft sent for CNC regrind to -0.25 mm undersize on both main and rod journals per OEM tolerance. Final dimensions verified within specification.

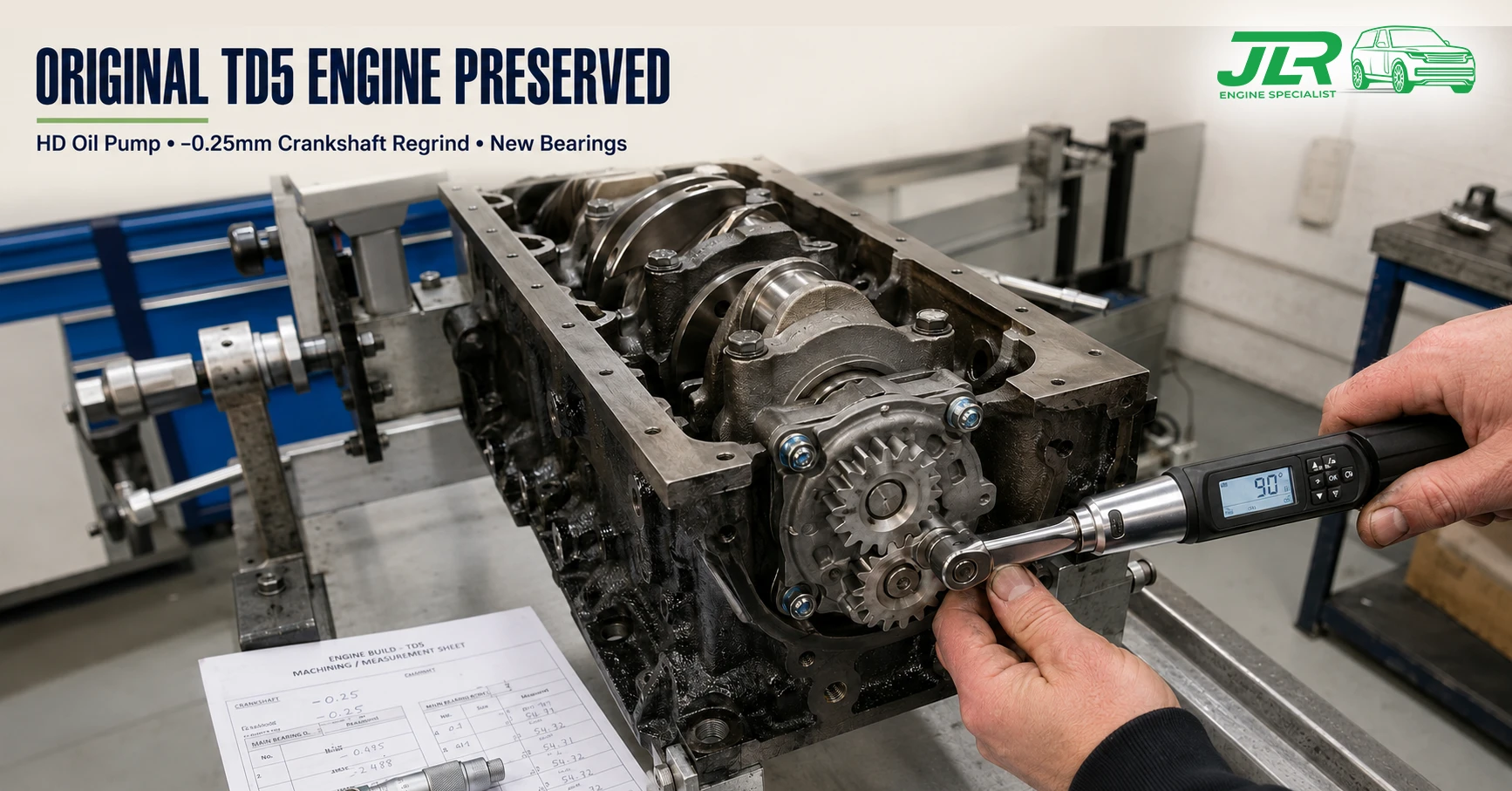

4. HD Oil Pump Installation: New Britpart Heavy Duty oil pump (ERR7282-HD) with steel-backed gears fitted. High-tensile M8 bolt kit (ERR7282-BLT) installed and torqued to 25 Nm + 90° angle per Land Rover Technical Bulletin TB-TD5-2003-07. This eliminates the sintered gear/backlash root cause permanently.
5. Bearing & Seal Renewal: Kolbenschmidt undersize main and big end bearings fitted. Elring PTFE front and rear crankshaft seals installed using dedicated tools. Payen head gasket set with new head bolts and valve stem seals. INA timing chain kit replaced preventively at this mileage.
6. Post-Build Verification: Mechanical oil pressure test at hot idle: 2.4 bar (PASS — well above 1.0 bar minimum). Crankshaft end float: 0.12 mm (PASS). Road test completed successfully. 12-month unlimited mileage warranty applied.

This methodology mirrors the same precision measurement discipline we apply to modern JLR platforms, including the TDV6 crankshaft failure case study where journal measurement and regrind tolerances are equally critical.

Why This Repair Lasts + Preventive Measures

This rebuild addresses the root cause, not just the symptoms. HD steel-backed gears eliminate the sintered iron wear pattern that created excessive backlash and shock-loaded the original bolts. High-tensile bolts torqued to the updated TB-TD5-2003-07 specification prevent fracture recurrence. Full bearing, seal, and timing chain renewal ensures the entire lubrication and valvetrain system is restored to better-than-factory specification. Backed by our 12-month unlimited mileage warranty.
