15+ Years TDV6/SDV6 Experience
We've replaced hundreds of timing chains on this specific engine family. We know every failure pattern, every updated part number, and every torque spec from memory.

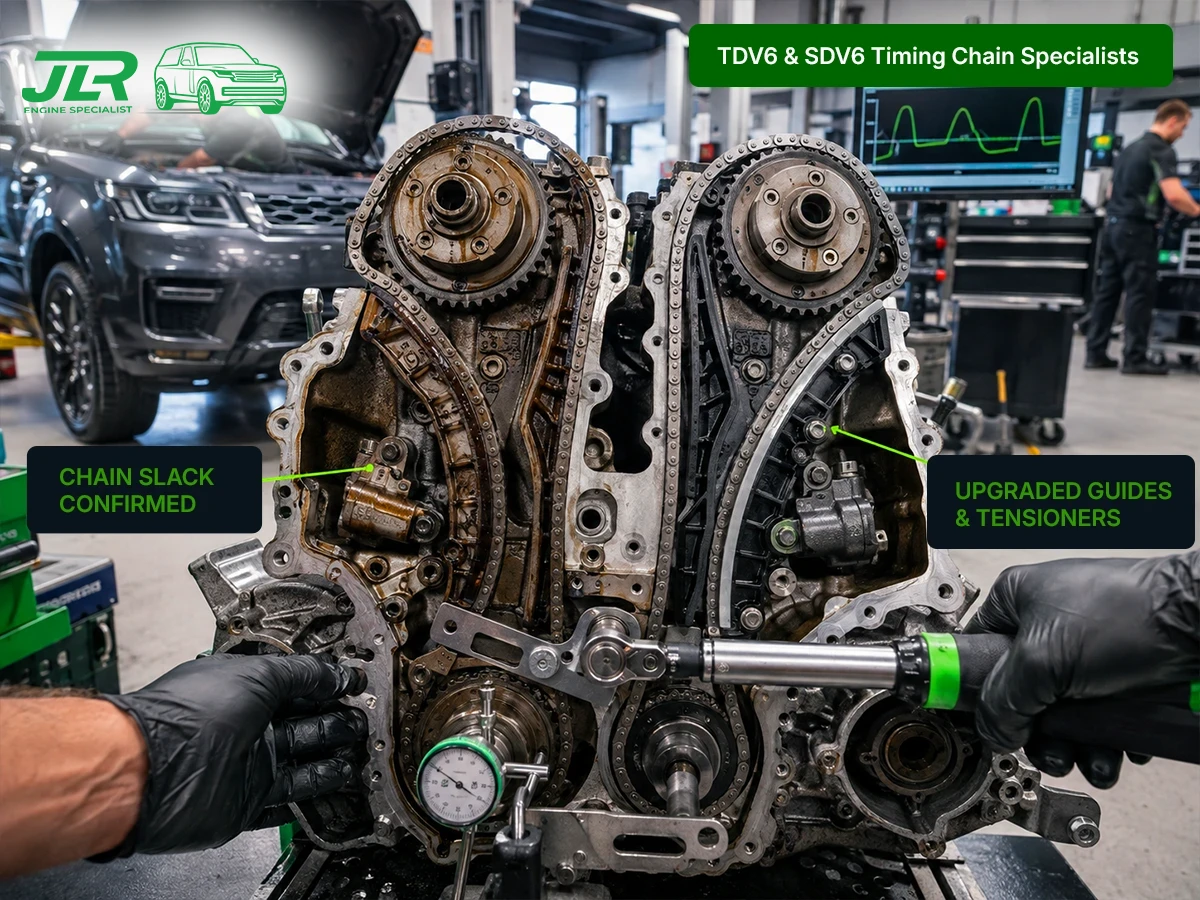

TDV6 & SDV6 Timing Chain Specialists | Engine-Out Replacement
Range Rover & Land Rover Timing Chain Replacement | TDV6 & SDV6 Specialists
A metallic rattle on cold start lasting 1–3 seconds is the definitive warning sign of timing chain failure on the 3.0L TDV6 and SDV6 engines. Ignoring this symptom leads to catastrophic engine destruction costing £5,000+. We specialise in complete engine-out timing chain replacement using upgraded steel-backed guides and heavy-duty tensioners that address the root cause of failure.
Every repair includes full diagnostics, precision re-timing with JLR WDS tools, ECU adaptation reset, and a 48-hour road test cycle. All work is backed by our 12-month unlimited mileage warranty.
TDV6/SDV6 Specialists
Upgraded Tensioners
12-Month Warranty
Fixed Price
★★★★★ 5.0/5 from 172 reviews
Cold Start Rattle?
1-3 second metallic noise indicates tensioner failure. Don't ignore it.
Engine-Out Repair
Proper fix requires full removal. No shortcuts, no in-situ patches.
Symptoms of Timing Chain Failure
Early identification prevents catastrophic engine damage. If your TDV6 or SDV6 exhibits any of these signs, immediate inspection is required.
- Cold start rattle (1–3 seconds): Metallic clattering noise immediately after starting from cold. This is caused by oil pressure draining from worn tensioners overnight.
- Metallic clatter from rear of engine: Noise originates from the gearbox end where the primary timing chain is located on the 3.0L diesel.
- Check engine light (P0016/P0017): Crankshaft/camshaft correlation fault codes indicate the chain has stretched beyond tolerance limits.
- Loss of power / limp mode: ECU detects timing variance and restricts performance to prevent valve contact.
- Rattling when hot (advanced failure): If noise persists at operating temperature, the chain is severely stretched and failure is imminent.
Critical Warning
If the cold start rattle lasts more than 5 seconds or occurs when the engine is warm, stop driving immediately. Continued operation risks valve-to-piston contact, which destroys the cylinder head and pistons — turning a £2,000 chain job into a £6,000+ engine rebuild.
Not Sure What You're Hearing?
We offer a fixed-price diagnostic inspection including borescope assessment and live data analysis to confirm whether your timing chain is the source of the noise.
Book a DiagnosticModels & Engines Affected
The timing chain defect is specific to the 3.0L diesel V6 platform. Petrol V6 and V8 models use different chain systems and are not affected by this particular failure pattern.
| Model | Generation | Engine Code | Years | More Info |
|---|---|---|---|---|
| Land Rover Discovery 4 | LR4 | 306DT (TDV6) | 2009–2016 | View → |
| Range Rover Sport | L320 / L494 | 306DT / 306D1 | 2009–2018 | View → |
| Range Rover | L322 / L405 | 306DT / 306D1 | 2009–2018 | View → |
| Jaguar XF | X250 | 306DT / 306D1 | 2009–2018 | View → |
| Jaguar XJ | X351 | 306DT / 306D1 | 2009–2018 | — |
Note: The 2.0L Ingenium diesel and petrol V6/V8 engines use different timing systems. This page specifically addresses the 3.0L TDV6/SDV6 chain failure.

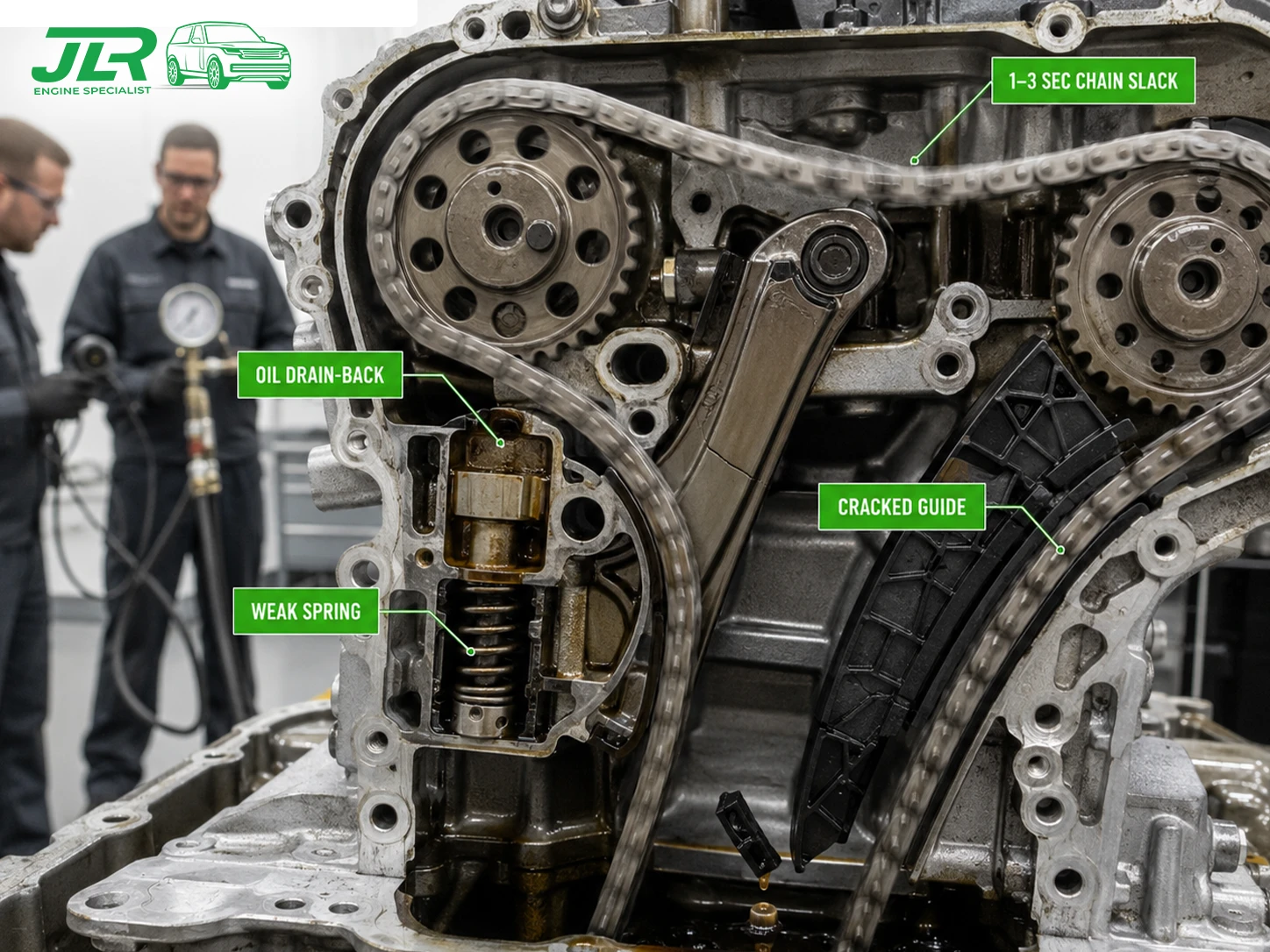

Why Timing Chains Fail on TDV6/SDV6
Contrary to popular belief, the chain itself rarely stretches first. The root cause is a combination of three design weaknesses in the original equipment:
- Hydraulic tensioner drain-back: Factory tensioners lack adequate check valves, allowing oil to drain out overnight. On cold start, the chain runs slack for 1–3 seconds until pressure builds — this is the rattle you hear.
- Plastic guide rail cracking: Original guides are made from a plastic composite that becomes brittle over time, especially in UK cold weather. Sections break off and jam in the sump or chain path.
- Weak tensioner springs: The internal spring mechanism loses tension over thermal cycles, reducing the force applied to the chain even when oil pressure is present.
UK Driving Conditions Accelerate Wear
Short urban journeys and stop-start driving prevent the engine from reaching stable thermal equilibrium, increasing thermal cycling stress on guides and preventing consistent oil pressure at the tensioners.
Our Permanent Repair Process
There is no shortcut. A proper TDV6/SDV6 timing chain replacement requires complete engine removal. Any garage offering an "in-situ" fix is cutting corners that will cost you later.
1
Diagnostic Scan & Borescope Inspection
Free initial assessment. We read live cam/crank correlation data and insert a borescope through the oil filler to visually inspect guide condition. Video evidence sent directly to you before any work is approved.
2
Full Engine Removal
Engine extracted using OEM-approved hoists and cradle. This provides full access to the rear-mounted timing chain assembly and allows thorough cleaning of the sump and oil pickup strainer.
3
Complete Component Replacement
All wear items replaced as a set: upgraded steel-backed guide rails, heavy-duty hydraulic tensioners with improved check valves, primary and secondary chains, crank and cam sprockets, front cover gasket, and all seals.
4
Precision Re-Timing with JLR WDS
Camshafts and crankshaft locked in exact TDC position using manufacturer-specific timing tools. Torque settings verified with calibrated wrenches to JLR specification. No guesswork.
5
ECU Reset & Adaptation
Post-rebuild, we clear stored fault codes and reset cam/crank adaptation values using SDD/WDS diagnostic software. This ensures the ECU recognises the new chain position and doesn't trigger false correlation faults.
6
48-Hour Road Test Cycle
Vehicle undergoes multiple cold-start cycles, motorway running, and load testing over 48 hours. Oil pressure monitored live. Only signed off once we confirm zero rattle across all conditions.
Parts sourced from tier-one OEM suppliers including INA, Gates, and Febi — confirmed against your VIN before ordering.
Get Your Fixed QuoteTiming Chain Replacement Pricing
Transparent fixed pricing confirmed before work begins. No hidden labour charges or surprise part markups.
TDV6 / SDV6 Timing Chain Kit
Complete engine-out replacement inc. all parts & labour
£1,795 – £2,195
Inc. VAT
- All parts: chains, tensioners, guides, sprockets, seals, gaskets
- Labour: engine removal, rebuild, refit, and testing
- Diagnostics: pre-inspection and post-rebuild ECU adaptation
- 48-hour road test with cold-start verification
- 12-month unlimited mileage warranty
- Free collection & return (mainland UK)
Price disclaimer: Prices are estimates for standard timing chain replacement on a serviceable TDV6/SDV6 engine in typical condition. Final fixed quote provided after diagnostic inspection. VAT is included. Additional costs may apply if secondary damage (e.g., bent valves, damaged camshafts) is identified during strip-down — these are always quoted separately before proceeding. Part numbers vary by VIN and build date.
Why Choose JLR Engine Specialists for Timing Chain Repair?
Upgraded Components Only
We never reinstall factory-spec plastic guides. Every kit includes steel-backed rails and heavy-duty tensioners with improved check valves — addressing the root cause permanently.
12-Month Unlimited Mileage Warranty
Parts and labour fully covered. If anything related to our timing chain work fails within 12 months, we rectify it at zero cost — regardless of mileage driven.
Certified with JLR WDS Tools
Factory-level diagnostic access for accurate pre-assessment and mandatory post-rebuild ECU adaptation. Generic OBD readers cannot complete this job correctly.
Nationwide Collection & Delivery
Based in Billericay but serving the entire UK. We arrange enclosed transport for non-drivable vehicles and return them tested and warranted.
Video Evidence Before Approval
Borescope footage of your chain condition sent via WhatsApp before you commit. Full transparency — see exactly what we see.
Related Reading
Technical articles covering TDV6/SDV6 failures and prevention strategies. Written by our specialists based on real workshop data.
Top 10 Most Expensive Range Rover Engine Failures
Including timing chain neglect — and how early intervention saves thousands.
TDV6 Crankshaft Failure Symptoms
Often misdiagnosed as timing chain rattle. How to tell the difference.
SDV6 Turbo Failure Prevention
Oil starvation from chain debris can kill turbos. Protect both systems.
Related Service Pages
Frequently Asked Questions
Direct answers to the most common questions about TDV6/SDV6 timing chain replacement.
Only to reach a specialist — and only if the rattle lasts less than 3 seconds on cold start. If the noise persists when warm, exceeds 5 seconds, or is accompanied by a check engine light, do not drive the vehicle. Valve-to-piston contact can occur without further warning, destroying the engine. Arrange recovery or collection instead.
Typically 3–5 working days from drop-off to collection. This includes engine removal, full rebuild, reassembly, ECU adaptation, and our mandatory 48-hour road test cycle with multiple cold starts. We do not rush this job — correct re-timing and verification cannot be hurried.
Yes. All timing chain replacements include a 12-month unlimited mileage warranty covering both parts and labour. If any component we fitted fails or the rattle returns within that period, we rectify it at no charge. Full terms available at /warranty.
It depends on your policy. Many third-party extended warranties exclude timing chains as "wear items," while some comprehensive policies cover them if failure is sudden and not due to neglected servicing. Check your policy wording for "timing gear," "chain drive," or "internal engine components." We can provide a detailed diagnostic report to support your claim if applicable.
Partially. We can perform a borescope inspection through the oil filler cap to assess visible guide condition and use live diagnostic data to check cam/crank correlation values. However, full measurement of chain stretch and tensioner function requires engine removal. Our diagnostic inspection confirms whether replacement is necessary before committing to the full job.
On the 3.0L TDV6/SDV6, the primary timing chain is located at the flywheel end of the engine (rear), not the front. Accessing it requires separating the engine from the gearbox. Additionally, proper cleaning of the sump and oil pickup strainer — critical to prevent repeat failure from debris — is impossible with the engine in situ. In-situ repairs are incomplete and unreliable.
We use OEM-quality parts from tier-one suppliers including INA, Gates, and Febi — the same manufacturers that supply JLR production lines. These meet or exceed genuine specifications without the dealer margin. Critically, we use upgraded steel-backed guides and heavy-duty tensioners that improve upon the original design. All part numbers are confirmed against your VIN before ordering.
If borescope or compression testing reveals piston/valve contact, we will advise you immediately with a revised quote. Options include cylinder head refurbishment, valve replacement, or full engine replacement depending on severity. We never proceed with additional work without your explicit approval and a written quote.
Hearing That Cold Start Rattle?
Don't wait for catastrophic failure. Call 0203 488 4649 or WhatsApp 07975 827 396 for a free initial assessment. We'll confirm whether your timing chain needs replacement and provide a fixed quote before any work begins. Nationwide collection available.
