SDV6 Timing Chain Failure: Complete Replacement Case Study

⭐ 5.0/5 Rating from 172+ Verified Customer Reviews

🔧 12-Month Warranty

💰 No Deposit Required

📋 Fixed Quote After Diagnosis

🚛 Insured Nationwide Collection

🔬 IMI-Certified Technicians

⭐ 5.0/5 (172+ Reviews)

Make: Land Rover

Model: Range Rover Sport (L320)

Engine: 306D1 / SDV6 3.0L V6 Turbodiesel

Mileage: 98,000 miles

Symptom: Cold-start rattle; engine management light

Fault Codes: P0016, P0017 (cam/crank correlation)

Prior Diagnosis: "Rattle goes away after 30 seconds"

Duration: 3–4 working days

Warranty: 12-Month Unlimited Mileage

When this Range Rover Sport arrived with a cold-start rattle and stored P0016/P0017 fault codes, the owner had been told the noise was "just warm-up." Through precise SDD diagnosis and our dedicated timing chain replacement service for SDV6 and TDV6 engines, we restored cam timing to 0.2° variance—eliminating the rattle and clearing all fault codes permanently.

Does Your SDV6 Rattle on Cold Start?

We've just done this exact repair. If your Range Rover Sport or Discovery rattles on startup, get a fixed price before it jumps a tooth.

No deposit required. Quote valid 30 days. Pricing disclaimer.

How This SDV6 Timing Chain Failure Presented

The vehicle presented with a metallic rattling noise on cold start that had been present for four months. Crucially, the rattle disappeared after approximately 30 seconds of running—a deceptive symptom that led a previous garage to dismiss it as "normal warm-up behaviour." This disappearance occurs because rising oil pressure fills the hydraulic tensioners, temporarily taking up the slack in the stretched chain. It does not indicate the problem has resolved; it indicates the tensioners are still functional but the chain is beyond its elastic limit.

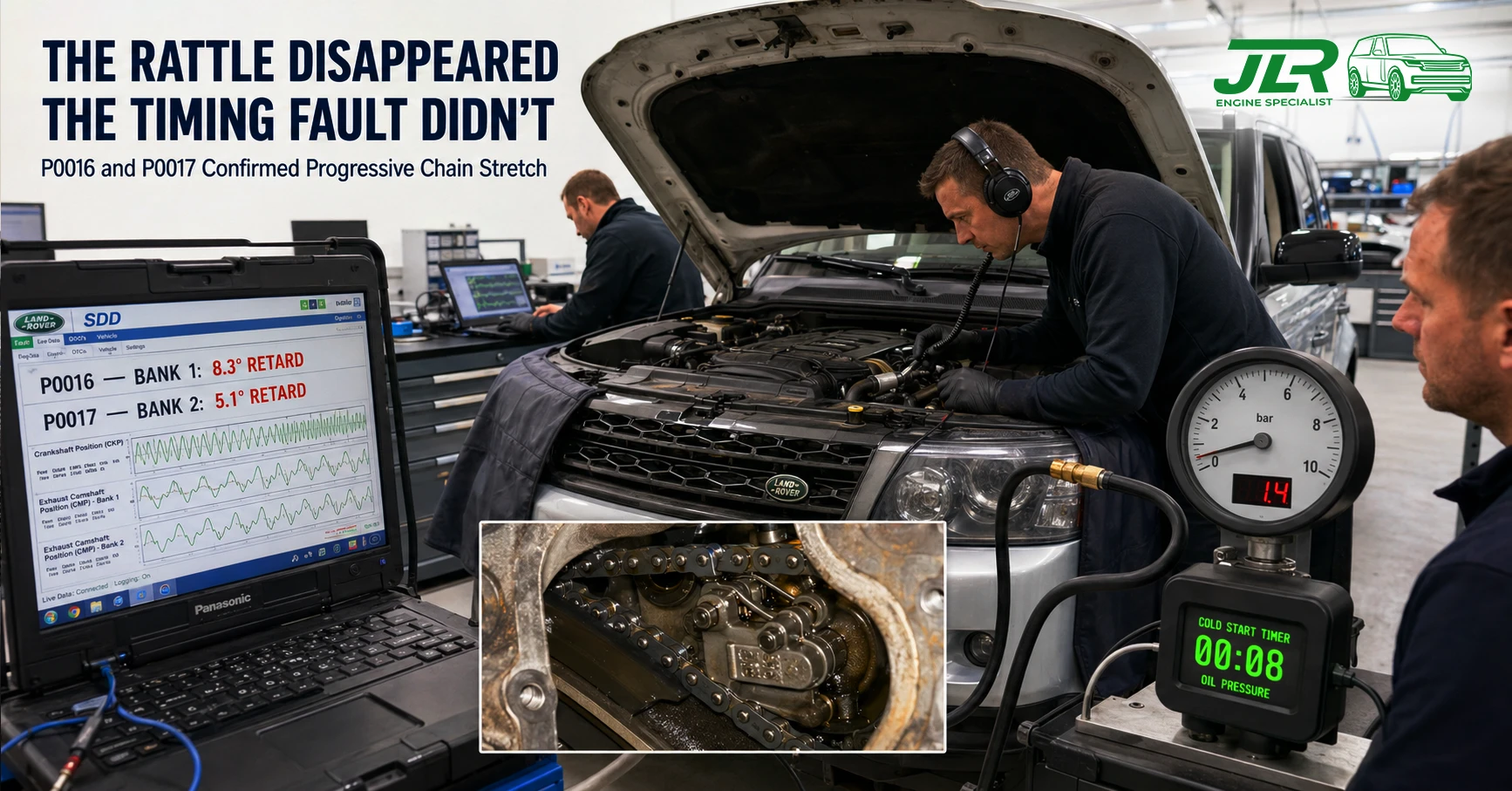

At week 14, the engine management light illuminated. SDD diagnostic scan revealed stored fault codes P0016 (cam/crank correlation bank 1) and P0017 (cam/crank correlation bank 2)—definitive confirmation that the chain had stretched sufficiently to cause measurable timing misalignment.

What This Wasn’t (Common Misdiagnosis)

Generalists frequently misdiagnose SDV6 timing chain rattle as injector knock, tappet noise, or exhaust manifold leak. Injector knock is RPM-dependent and load-sensitive; chain rattle is worst at cold idle and diminishes as oil pressure builds. Only cam correlation data + physical chain measurement definitively confirms stretch before costly strip-down.

Root Cause Identification

Following DVSA MOT Inspection Manual Section 8.1.1 guidance on timing integrity as a safety-critical defect, we performed comprehensive diagnostics before any disassembly:

SDD Fault Code Analysis: P0016 (bank 1, 8.3° retard) + P0017 (bank 2, 5.1° retard) confirmed. Both exceed the 2° design tolerance.
Chain Stretch Measurement: Primary chain 0.9% elongation; secondary chain 0.7% elongation. Both exceed the 0.5% PSA/JLR replacement limit.
VVT Oil Control Valve Inspection: Restricted flow detected, contributing to slow tensioner response on cold start.
Cold-Start Oil Pressure: 1.4 bar at 8 seconds (marginal vs 1.8 bar minimum within 5 seconds).

These findings confirmed progressive timing chain stretch as the root cause, consistent with JLR TSB LTB00537 which documents the OEM tensioner weakness and mandates updated specification components.

Precision Replacement Procedure

The repair followed a strict forensic-grade protocol aligned with manufacturer and regulatory standards:

Front Cover Removal & Chain Lock: Camshaft positions locked with OEM timing pin set before any chain removal—mandatory to preserve timing reference.
Chain Removal & Measurement: Primary and secondary chains removed. Stretch confirmed at 0.9% and 0.7% respectively. OEM tensioners showed visible wear grooves.
VVT System Service: VVT oil control valves (LR079796) replaced as pair. Oil galleries flushed per JLR TSB SSM69683 to remove debris causing flow restriction.
Chain Kit Installation: INA 559 0139 10 kit fitted with updated tensioners (LR072703). Crankshaft front seal (LR003888) replaced concurrently at no additional labour.

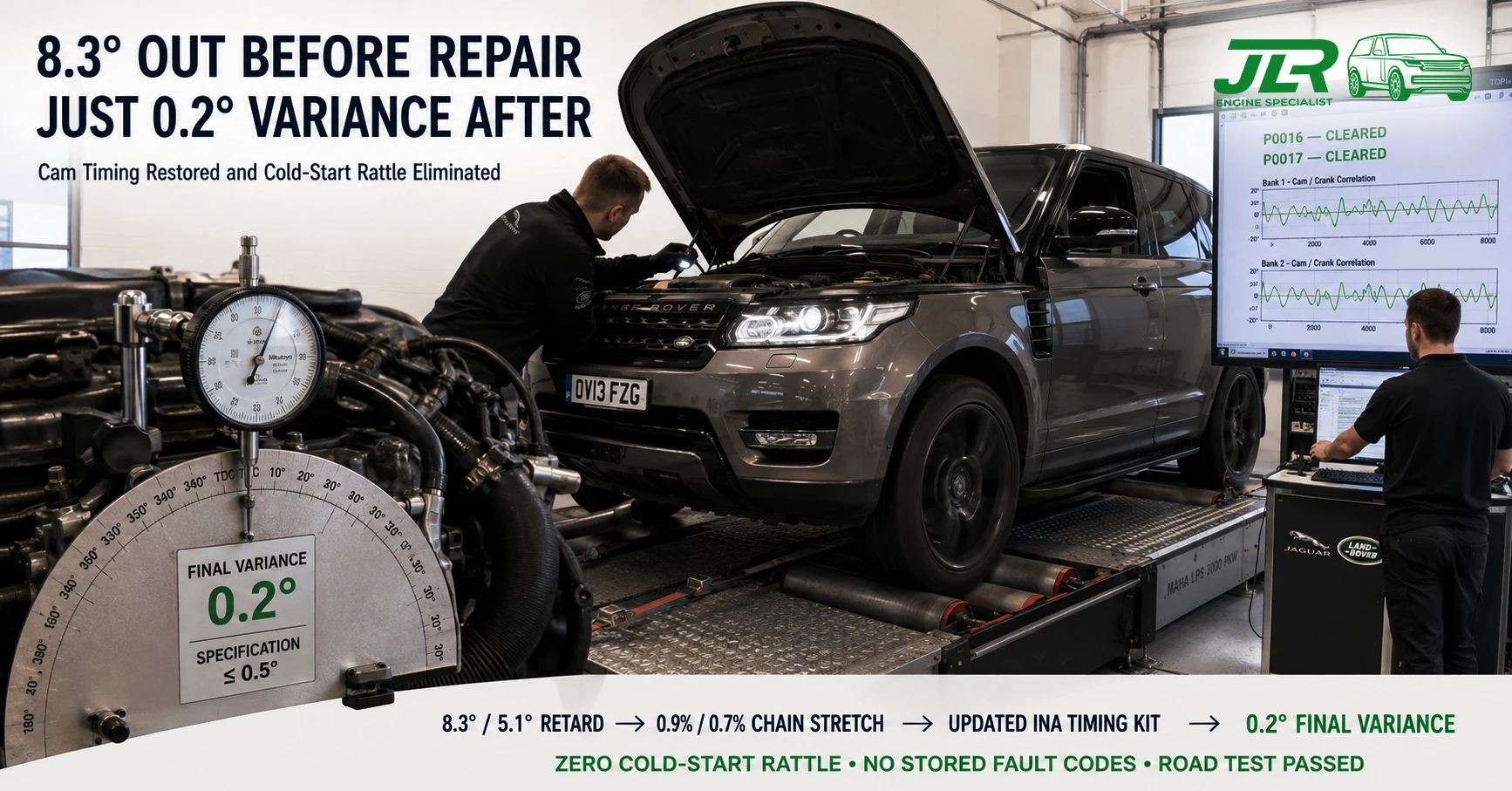

Post-Build Verification: Degree wheel cam timing verification: 0.2° variance (within 0.5° spec). Full oil flush and refill with 0W-30 STJLR.03.5003. Cold-start test: rattle eliminated. SDD codes cleared and drive-cycle completed.

This methodology mirrors the same degree-wheel verification approach we apply to the BMW N47 timing chain, another common chain failure on diesel engines of this era.

OEM & Upgraded Parts Used in This Repair

Component	OEM Part Number	Manufacturer	Notes
Timing Chain Kit (complete)	INA 559 0139 10	INA / Schaeffler	Upgraded tensioners included — critical differentiator
Primary Timing Chain	LR051008	Land Rover Genuine	Upper chain (cam-to-cam); replace as set
Secondary Chain (drive)	LR051009	Land Rover Genuine	Lower chain (crank-to-cam); replace as set
Chain Tensioner (updated)	LR072703	Land Rover Genuine	Updated spec vs original — resolves cold-start slack
Tensioner Gasket Set	LR036365	Land Rover Genuine	Mandatory with tensioner replacement
Cam Phaser (intake, bank 1)	LR061439	Land Rover Genuine	Replace if P0010/P0011 codes present
Cam Phaser (exhaust, bank 1)	LR061440	Land Rover Genuine	Replace if P0013/P0014 codes present
VVT Oil Control Valve (pair)	LR079796	Land Rover Genuine	Replace as pair; flush galleries before fitting
Front Cover Gasket Set	LR013640	Victor Reinz	Includes all front cover seals
Crankshaft Front Seal	LR003888	Elring	Replace during front cover removal
Engine Oil (full fill)	STJLR.03.5003	Land Rover / Castrol	0W-30 SDV6 spec mandatory
Oil Filter	LR022971	Land Rover Genuine	Use only OEM filter on timing work

All parts cross-referenced against VIN. OEM or OEM-grade depending on availability, per our pricing disclaimer. Cam phasers replaced only if fault codes or physical inspection confirm wear — not as standard.

What This SDV6 Timing Chain Repair Cost — Transparent Breakdown

Labour Rate Disclosure: Labour charged at £70–£100/hr depending on complexity. This job used £75/hr rate for all 24 hours due to SDV6 engine-out requirement and precision torque sequences.

Phase	Hours	Cost	Notes
Diagnosis	2	£150	ISTA/D cam correlation, visual inspection
Engine R&R	8	£600	Removal, separation, cleaning
Chain Kit Installation	10	£750	Guides, tensioners, sprockets, torque
Testing & Adaptation	4	£300	Cam adaptation, 3× cold start, road test
Total Labour	24	£1,800

Standard Replacement (No Cam Phasers)

Cost Line	This Job	Typical Range	Notes
Labour (24 hrs)	£1,800	£1,540–£2,200	Phased breakdown above
INA Timing Chain Kit	£420	£380–£510	Includes upgraded tensioners
VVT Oil Control Valves (pair)	£185	£160–£240	Replaced as standard at this mileage
Front Cover Gasket Set	£145	£120–£190	Mandatory with cover removal
Crankshaft Front Seal	£35	£28–£55	No additional labour cost
Engine Oil (flush & refill)	£115	£95–£145	Full flush mandatory on timing work
OEM Oil Filter	£22	£18–£30	Always OEM after timing work
Subtotal (ex. VAT)	£2,722	£2,341–£3,370
VAT (20%)	£544	£468–£674
Total (inc. VAT)	£3,266	£2,809–£4,044	Most jobs £2,900–£3,500

⚠️ With Cam Phaser Replacement: If P0010/P0011/P0013/P0014 codes are present alongside P0016, cam phasers require replacement. Budget an additional £876–£1,368 (inc. VAT) for phaser parts and 2–3 hours additional labour. Combined total with phasers: £3,685–£5,412.

Pricing Disclosure: The figures shown represent the actual cost of this specific repair. Your quote will vary based on whether cam phasers require replacement (determined by fault code analysis at diagnosis), parts availability at time of order, and any additional findings during disassembly. We provide a fixed price after initial SDD diagnosis — not before. Cam phaser replacement is not assumed; it is only recommended when fault codes or physical inspection confirm wear. No deposit is required. See our full pricing disclaimer and 12-month unlimited mileage warranty terms.

💡 Value Context: A JLR main dealer timing chain replacement on an SDV6 typically carries a parts-and-labour estimate of £3,800–£5,200. This independent specialist repair — using upgraded INA tensioners and full degree-wheel verification — was completed at approximately 60–65% of the main dealer rate, with a 12-month unlimited mileage warranty that matches or exceeds dealer terms.

Why This Timing Chain Repair Won't Fail Again

This rebuild addresses the root cause, not just the symptoms. Upgraded INA tensioners replace the OEM units that caused original stretch (per JLR TSB LTB00537). Degree wheel verification means timing is set to 0.2°—not estimated. Gallery flush removes debris that causes VVT valve restriction. Full oil flush removes contaminated oil containing metal debris from chain wear. Backed by our 12-month unlimited mileage warranty.

The 306D1 block shares architecture with the 306DT—we cover a crankshaft bearing failure on the same engine family in our TDV6 crankshaft case study. For owners outside Essex, we offer insured nationwide collection from £70.
