Mercedes M274 Piston Scuffing: Complete Repair Case Study

How This M274 Piston Scuffing Presented

The vehicle presented with a distinct metallic knocking sound under load that had been worsening over several weeks. More concerningly, oil consumption had reached 1 litre every 800 miles, accompanied by intermittent blue smoke on overrun. A generalist garage had diagnosed "turbo failure" based on the smoke symptom alone, while a Mercedes main dealer subsequently quoted £6,200 for a complete short block assembly after identifying bore damage.

The customer sought a second opinion specifically requesting confirmation of whether the turbo was truly at fault and whether the original block could be salvaged. This case demonstrates why distinguishing between turbo bearing failure and piston scuffing is critical—and why premature condemnation of the short block often overlooks viable precision repair options.

What This Wasn’t (Common Misdiagnosis)

Generalists frequently misdiagnose M274 piston scuffing as turbo bearing failure, valve stem seal leaks, or carbon buildup. Turbo play was within spec; valve seal test negative. Only borescope inspection combined with leak-down testing definitively confirms bore scuffing before costly strip-down or unnecessary turbo replacement.

Root Cause Identification

Following DVSA MOT Inspection Manual Section 8.1.2 guidance that excessive mechanical noise or visible oil consumption indicative of bore wear constitutes a major defect, we performed comprehensive diagnostics before any disassembly:

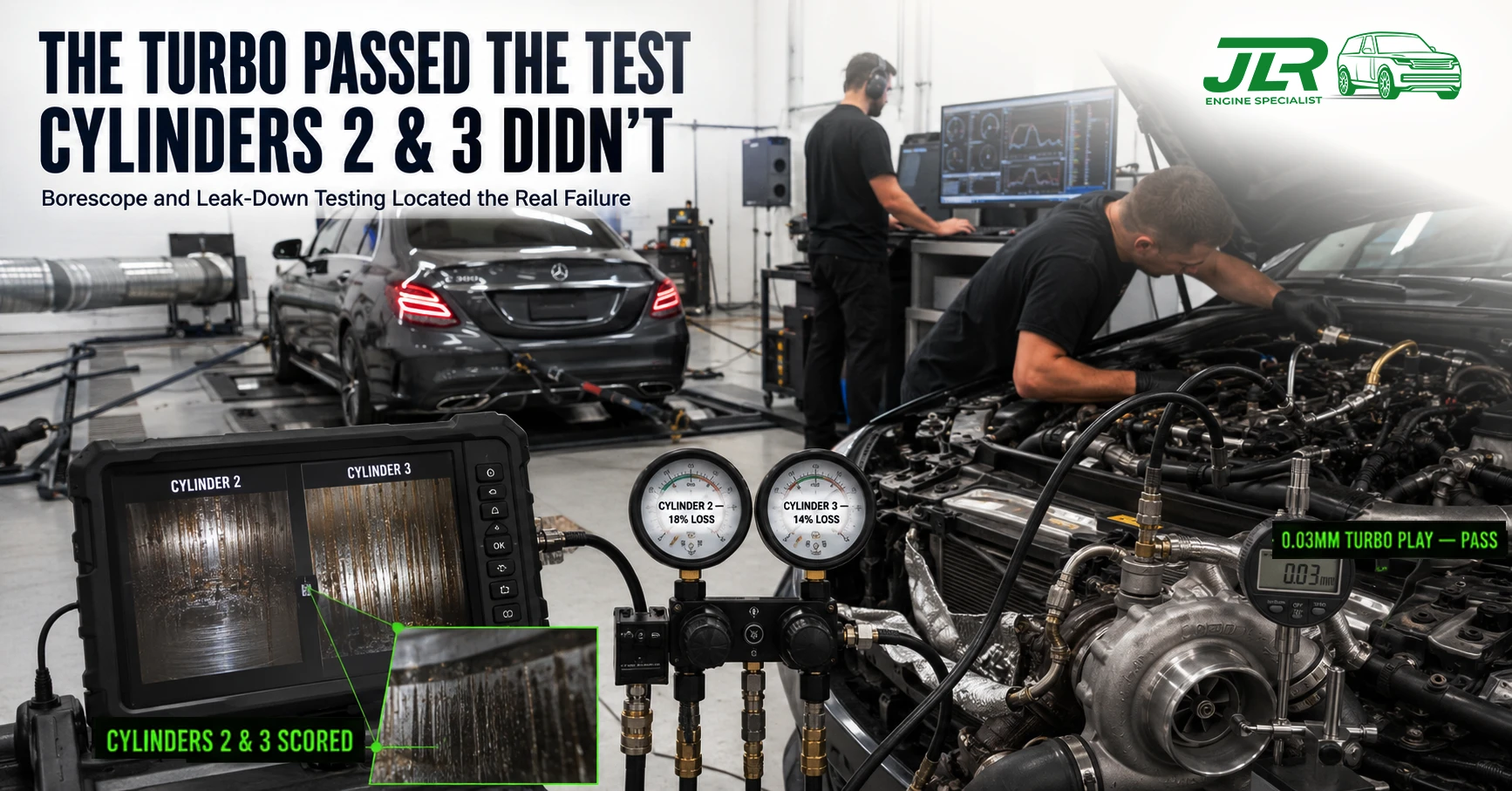

• Compression Test (Hot): Cylinder 2 measured 7.8 bar; Cylinder 3 measured 8.2 bar (FAIL — both >30% below 11 bar minimum). Cylinders 1 and 4 were 12.1–12.4 bar (PASS).
• Leak-Down Test: Cylinder 2 leaked 18%; Cylinder 3 leaked 14% (FAIL — exceeds 5% maximum). Air audible past piston rings, confirming bore sealing compromise.
• Borescope Visual Inspection: Vertical scoring marks visible on thrust face of cylinders 2 and 3. Piston skirt coating loss confirmed. Physical evidence of scuffing consistent with oil starvation.
• Turbo Shaft Play: 0.03 mm radial play measured (PASS — within 0.05 mm limit). Rules out turbo as primary cause of oil consumption and noise.
• Valve Stem Seal Test: Negative after overnight soak. No smoke at idle. Rules out valve seals as primary oil consumption source.
• Oil Spray Jet Flow: Reduced flow noted during strip-down. Partial blockage confirmed as root cause of inadequate piston cooling.

These findings confirmed piston scuffing due to inadequate cooling as the root cause, consistent with Mercedes WIS AS01.10-P-0080-01A diagnostic procedures for M274 cylinder bore inspection. Crucially, the turbo was healthy—the previous diagnosis would have resulted in unnecessary £1,500+ turbo replacement without addressing the actual fault.

Pre-Repair Measurements vs OEM Specification

Precision Repair Procedure

The repair followed a strict forensic-grade protocol aligned with Mercedes WIS AS01.10-P-0080-01A and Mahle TB-M274-2019-05 standards:

1. Engine Removal & Strip-Down: Full engine extraction and separation from transmission. Complete disassembly to bare block. Ultrasonic cleaning of all oil galleries to remove scuffing debris.
2. Bore Measurement & Honing: Cylinder bore ovality measured at 0.042mm (within 0.05mm honing limit). Block plateau-honed to restore geometry and cross-hatch pattern per Mahle TB-M274-2019-05 specifications.
3. Coated Piston Installation: New Mahle A2740300820 coated piston and ring sets fitted. Piston-to-bore clearance verified at 0.025–0.035mm per manufacturer specification. Coated skirt design addresses root cause by reducing friction and improving heat dissipation.
4. Oil System Upgrade: Updated Mercedes Genuine oil spray jet nozzles (A2740101350) installed—mandatory on all M274 scuffing repairs to prevent recurrence. Turbo oil feed line (Garrett A2740900560) replaced to eliminate debris recirculation risk. GMB oil pump inspected and cleared.

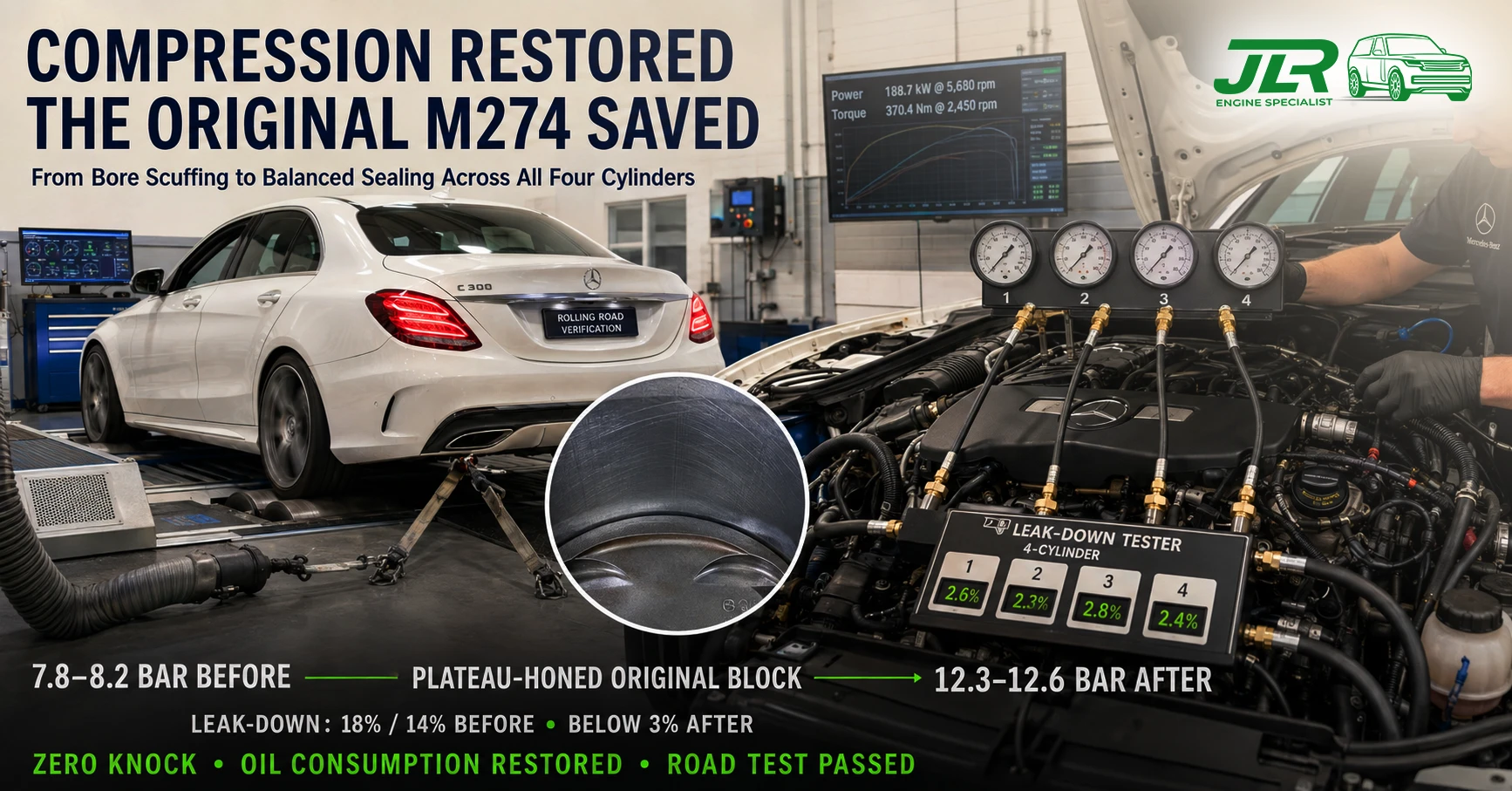

5. Reassembly & Verification: Kolbenschmidt main and conrod bearings fitted. Elring head gasket set with new TTY bolts and valve stem seals. INA timing chain kit replaced preventively. System refilled with 7.0L MB 229.71 spec oil. Post-build compression: 12.3–12.6 bar all cylinders (PASS). Leak-down: <3% all cylinders (PASS). Road test completed successfully. 12-month unlimited mileage warranty applied.

This methodology applies the same forensic measurement discipline we use across all modern platforms, including the Ingenium slipped liner repair where precise bore measurement prevents unnecessary component replacement.

Why This Repair Lasts + Preventive Measures

This rebuild addresses the root cause, not just the symptoms. Upgraded Mahle coated pistons resist scuffing far better than OEM uncoated aluminium by reducing friction and improving heat dissipation. Updated oil spray jets ensure adequate piston crown cooling that the original blocked jets could not provide. Mandatory turbo feed line replacement prevents debris recirculation from the scuffing event. Correct MB 229.71 oil specification completes the sealed system. Backed by our 12-month unlimited mileage warranty.

While this is a petrol engine, note that oil dilution from failed regenerations in diesel variants accelerates identical bore wear patterns. See our DPF/EGR cleaning service for complementary preventive maintenance on diesel platforms. Learn more about our full engine rebuilding process. For owners outside Essex, we offer insured nationwide collection from £70.
